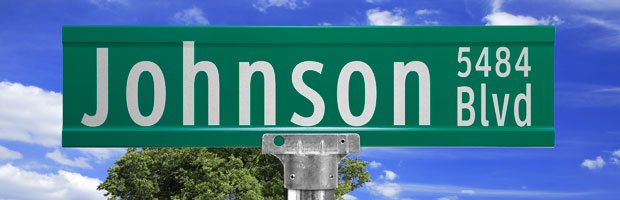

MUTCD Street Name Signs – Extruded Blade with Optional Prefix and Suffix
The extruded blade street name sign is a standardized sign listed in the Manual of Uniform Traffic Control Devices (MUTCD) under the designation of D3-1. According to the manual, street name signs should be installed in urban areas at all street intersections regardless of other route signs that might be present and should be installed in rural areas to identify important roads that are not otherwise signed. Furthermore, the lettering for names of streets on these street signs shall be composed of a combination of lower-case letters with initial upper-case letters.
- Thickness of .080″ at the center and .240″ thickness at the top and bottom edges
- Signs are printed on both sides (single-side printing is available by request)
- Custom street numbers
- Both the background and text are retroreflective
- Works without mounting holes
- Signs are fabricated from .080" aluminum
Street name signs are available in two different reflective materials, each with its own purpose as detailed below.
Color Choices: Official MUTCD / DOT Colors
The MUTCD designates green as the official background color of all guide signs but also allows for substitute background colors. The alternate colors include blue, brown, and white. For the background colors green, blue, and brown, the street name and border, if used, must be white. For the background color white, the street name and border, if used, must be black.
Unofficial Novelty Colors
These colors are not approved for use on official street name signs for public roads but can be used on private roads, in private developments, and in other areas where signs do not have to meet MUTCD guidelines.

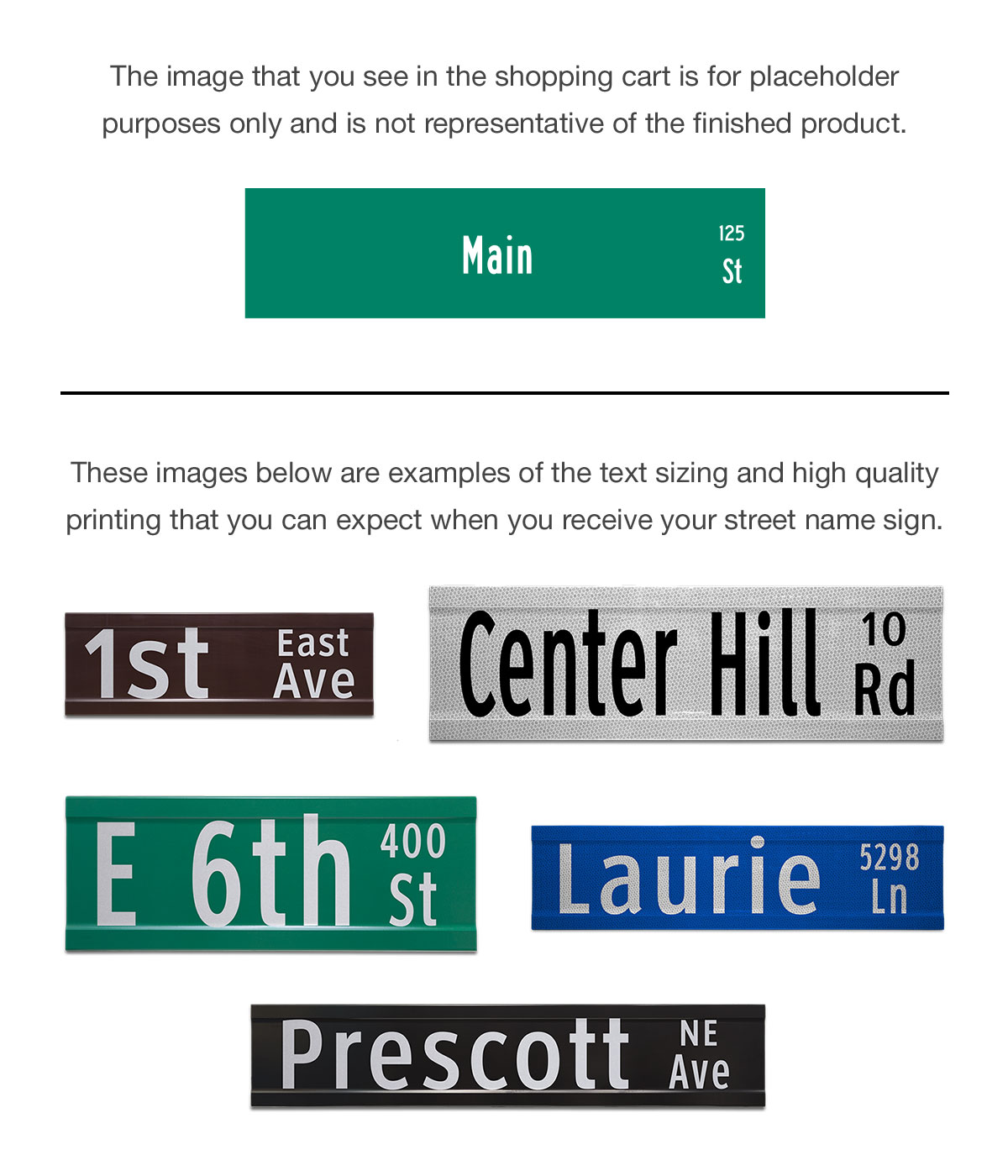

Samples of Printed Signs:
Please see the images below for actual signs printed with an image and street number.
Mounting Bracket Information:
What mounting brackets do you have for street name signs?
Depending on the type of post you’ll be mounting your street name signs onto, these are the brackets available:
What size bracket do I need to install the street name sign?
Choosing the right mounting bracket will not only allow your sign to be displayed as desired, but it will also ensure that your sign is supported properly. The chart below will help you determine how wide your mounting bracket should be for each size street name sign.
The Sign Experts:
If you need advice on what sign is best for your needs or you are looking for a quote on bulk orders, our knowledgeable customer service team can help you out.
Trusted by Thousands:
Every year TrafficSign.com sells nearly 15,000 street name signs across the country.
Your order is directed to our production team where it is printed to your specifications and shipped to your door as quickly as possible.
Trusted Since 1988:
We’ve been proudly serving customers since our facility first opened in 1988 and continue to be recognized by our customers for exceptional service.
Highest Quality Street Name Signs:
We produce our street signs using the highest quality inks and reflective materials to ensure your sign lasts for years.
