Street Name Sign Wing Bracket
Item #
Y3516-WG16

Note:

Holes on sign are not required when using this bracket.

Street Name Sign Wing Bracket

Size:

Material:

Laminate:

Mounting:

Packaging:

Price:
$19.60
Qty
Each
  • 1–2
    $19.60
  • 3–4
    $18.60
  • 5–9
    $17.70
  • 10–19
    $16.80
  • 20–39
    $16.00
  • 40+
    $15.20

Your item has been added to cart.

0 In Stock
Special freight arrangements are necessary.

Need a quote for a large order? Call 800‑274‑6273 or email us.

Product Information

Details

Street Name Sign Wing Brackets

The street name sign wing bracket is designed to hold street name signs on large round posts and poles so that the sign in perpendicular to the pole. These brackets will accommodate .080″ flat blade signs and extruded blade signs as well as 6″ and 9″ tall signs.

The 16" wide bracket is best suited for street name signs up to 24" long, and the 24" wide bracket is best suited for 30" to 42" street name signs. These wing brackets also have three 3/8" mounting holes which allow them to be installed on wood posts, and three well-defined slots that fit up to 3/4" stainless steel strapping, helping to keep the bracket in place during the installation.

This bracket can also be mounted on a 2 lbs./ft. U-Channel Post (Part # Y3434), together with 2½ bolting set (Part # Y3465 or Y4904TS). When installing wing bracket on post, use the top and bottom holes on the bracket. Our mounting hardware is sold in sets of 2 bolts, nuts and washers. View image.

  • 16 inch street name wing bracket

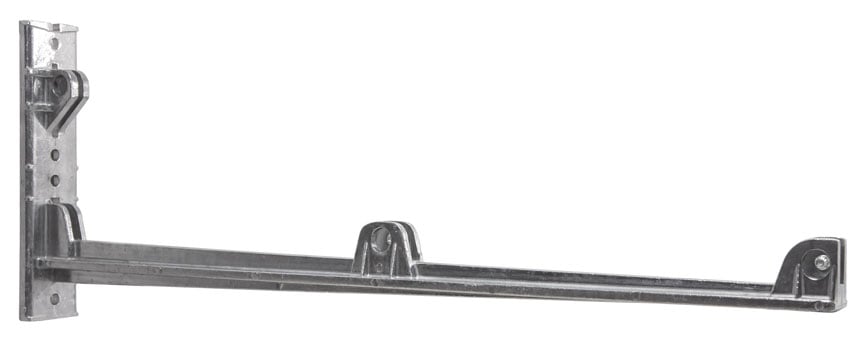

  • 24 inch street name wing bracket

Wing Bracket Compatibility

  • U-channel metal post with a mounted street sign
    Wing bracket installed on a u-channel post
    using Y3465 or Y4901TS.
  • Square metal post with a mounted street sign
    Wing bracket installed on a square post
    using Y3465 or Y4901TS.

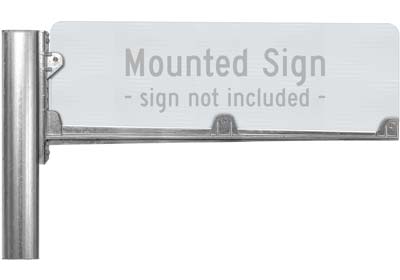

  • Round metal post with a mounted street sign
    Wing bracket installed on a round post.
    Requires drilling holes or using stainless steel
    strapping (available in SSS38, Y3534, or Y3466).

Tools required for installation:

Installation steps:

  1. Measure out enough stainless-steel strapping to go around the pole including an extra 12″ or so of slack.
  2. Insert one end of the strapping into your buckle or wing seal and bend about 2″ to 3″ of strapping underneath the wing seal or buckle.
  3. Wrap the strapping around the pole and slide the other end of the strapping through the buckle or wing seal and bend it back so that the strapping stays in place.
  4. Take your wing bracket and insert the middle of it under the strapping. Two people may be needed for this step to hold the bracket in place.
  5. Tighten the strapping down with the strapping tool, making sure that the tool is against the wing seal or buckle during this step.
  6. Once the strapping is tight, bend the strapping with the tool to hold the tension and use the cutter to cut off the excess strapping.
  7. Fold the excess strapping over the buckle or wing seal and hammer down the wings to secure the strapping.
  8. Repeat these steps to install the other two bands of strapping.
  9. Place your street name sign in the bracket.
  10. Tighten down the set screws using the 5/32″ hex key.
  • Strapping being inserted into the buckle
    Strapping being inserted into the buckle
  • Strapping being inserted into wing seal
    Strapping being inserted into wing seal
  • The other end of the strapping being inserted and bent to hold it in place
    The other end of the strapping being inserted
    and bent to hold it in place

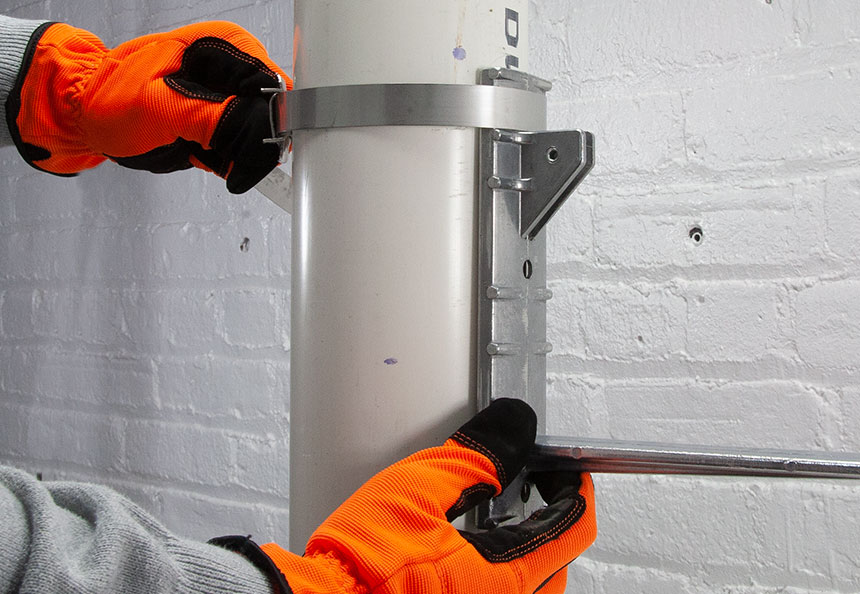

  • Wing bracket being put under strapping
    Wing bracket being put under strapping

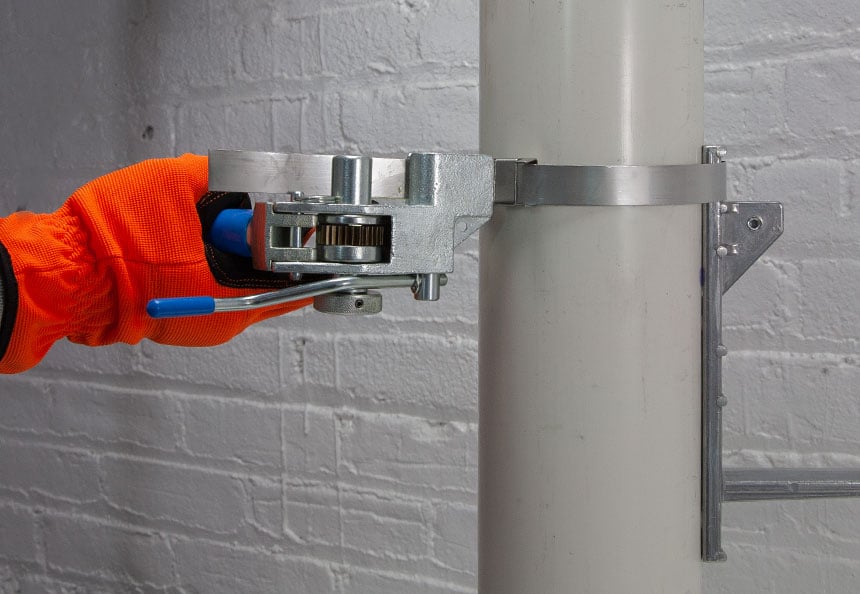

  • Tightening the strapping around the pole with tool number Y3532
    Strapping tool Y3532 tightening the strapping
    around the pole
  • Tightening the strapping around the pole
    Same process with a different tool Y3533
    tightening the strapping around the pole
  • Wing bracket mounted onto pole and strapping cut to size
    Wing bracket mounted onto pole
    and strapping cut to size
  • Extra strapping left over to be sealed under buckle or wing seal
    Extra strapping left over to be sealed
    under buckle or wing seal
  • Bend the strapping over the buckle or wing seal to partially secure the strapping
    Bend the strapping over the buckle or wing
    seal to partially secure the strapping
  • Wing seal or buckle being closed to secure the strapping
    Wing seal or buckle being closed to
    secure the strapping
  • Street name sign on wing bracket
    Street name sign on wing bracket
  • Tightening set screws with Y3522 T-handle Hex Key
    Tightening set screws with Y3522
    T-handle Hex Key
  • Wing bracket used with street name sign on light pole
