Roll-Up and Rigid Aluminum Signs

Advance Warning Rigid and flexible "roll-up" signs may be used for mobile, short duration and short term stationary work. Rigid signs must be mounted at least 5 feet above grade (7 feet where there are pedestrians or parked cars) for visibility and to avoid windshield penetration if they are impacted. Roll-Up signs must be mounted at least one foot above grade. Use retro reflectorized rigid signs for night work.

The signs below are available in 18″, 24″, 30″, 36″ and 48″ rigid aluminum, and 36″ and 48″ for roll-up materials.

Roll-up signs lead time is 15 days after approval. Rigid aluminum signs ship within 3 - 5 business days.

More Custom Diamond Colors:

Need to design a custom sign but don’t see a template you like? Email us directly at sales@trafficsign.com.

Loading…
This page could not be loaded. Please try again or contact customer service for assistance.
STEP 1 OF 6: Choose Layout
Sign Layout

The options below will allow you to have text only, image only or a combination of text and images on the sign. You have the option to upload your logo or custom image. You could also select "Upload Your Own Design" to upload an image to cover the entire sign.

Upload Your Own Design

Upload your design here — using this option means you will have your own design cover the entire sign. Before uploading, make sure the size and shape of your artwork matches the size you select on Step 1 above.

Your custom image upload will be adjusted to fit proportionately within the sign dimensions, avoiding the edges of the sign (leaving a smaller border ranging in size from 1/4” up to 1-1/2”).

Upload custom image…

For Best Results: PDF, AI, EPS, PS

Other Supported File Types: BMP, JPG, PNG, PSD, SVG, TIF

Files up to 20 MB are supported.

Learn More

By uploading your file, you warrant that you own or control its rights.

Choose File
PrevNext
STEP 2 OF 6: Enter Your Text
Main Text

Due to its diamond shape, text will occasionally display outside the margins of the sign. Text and Graphics will be edited, fitted and reviewed by our design team prior to printing.

Main Text font
Main Text fontsize
Main Text alignment

Optional Text
Optional Text font
Optional Text fontsize
Optional Text alignment

Stock Image or Image Upload

Image and Text will be adjusted to fit proportionately inside diamond before production. Please note, any uploaded image will be converted into a 1 color image (black), price is based on printing black on reflective. If your image has multiple colors and low resolution, we will contact you to request better artwork.

Upload custom image…

For Best Results: PDF, AI, EPS, PS

Other Supported File Types: BMP, JPG, PNG, PSD, SVG, TIF

Files up to 20 MB are supported.

Learn More

By uploading your file, you warrant that you own or control its rights.

Choose File
PrevNext
Arrows
PrevNext
Recreation Symbols (Sports, People, Activities)
PrevNext
Speed Limits (from 1 thru 100)
PrevNext
Traffic & Parking Related Symbols
PrevNext
STEP 3 OF 6: Choose Sign Size
Size Options

Sizes 18″, 24″ and 30″ are only available in rigid aluminum. 36″ and 48″ are offered in rigid aluminum and roll-up sign materials.

STEP 4 OF 6: Choose Material
Material Options

This sign is available in either Rigid Aluminum or Roll-Up materials. See options below.

MaterialVisibilityResistanceOutdoor DurabilityService TemperatureInfo
N/A
Fading and Mild Chemicals
5 to 7 Years
-40° to 212° F
More Information
Good Reflective
Fading and Mild Chemicals
Up to 7 Years
-10°F - 130°F
More Information
Good Reflective
Fading and Mild Chemicals
Up to 7 Years
-10°F - 130°F
More Information
Better Reflective
Fading and Mild Chemicals
7 to 10 Years
-10°F - 130°F
More Information
Better Reflective
Fading and Mild Chemicals
7 to 10 Years
-10°F - 130°F
More Information
Best Reflective
N/A
10+ Years
-10°F - 130°F
More Information
Best Reflective
N/A
10+ Years
-10°F - 130°F
More Information
Best Reflective
N/A
Up to 3 Years
-10°F - 130°F
More Information
Best Reflective
N/A
10+ Years
-10°F - 130°F
More Information
Day Time Use Only
N/A
Up to 3 Years
N/A
More Information
Minimum Reflectivity
N/A
Up to 3 Years
N/A
More Information
Minimum Reflectivity
N/A
Up to 3 Years
N/A
More Information
Minimum Reflectivity
Mild Chemicals
Up to 3 Years
N/A
More Information
Minimum Reflectivity
Mild Chemicals
Up to 3 Years
N/A
More Information
Higher photometric performance
Mild Chemicals
Up to 3 Years
N/A
More Information
Higher photometric performance
Mild Chemicals
Up to 3 Years
N/A
More Information
Higher photometric performance
Mild Chemicals
Up to 3 Years
N/A
More Information
STEP 5 OF 6: Mounting Options
Mounting Holes or Ribs Assembly

Rigid aluminum diamonds are supplied with 3/8" dia. mounting holes. Hole configuration is as follows: 18″, 24″, 30″ and 36″ diamonds have 2 holes (top and bottom), 48″ diamonds have 4 mounting holes. Roll-Up materials have two rib options, with and without flag assembly.
View illustration of mounting holes and rib options.

STEP 6 OF 6: Velcro or Laminate
Velcro or Laminate Options

The options are:
1. None (no laminate) or Anti-Graffiti Film, applicable only to Aluminum Signs.
2. Velcro options for Roll-Up materials
Is your sign going to need velcro strips over all or some of the words? Please specify the requirement in the instructions field below. Velcro strips are optional, and typically used on signs with variable messages. View illustration of velcro options.

Special Instructions

Product Information

Roll-Up Signs

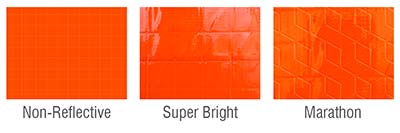

Roll-up sign material grades

Roll-up signs material grades

  • Fluorescent Non-Reflective Solid Vinyl signs are recommended for day time use only, this material is not MUTCD compliant when used at night.
  • Fluorescent Super Bright Reflective Vinyl signs are MUTCD compliant when used day or night.
  • Flourescent Marathon Reflective Vinyl signs are MUTCD compliant when used day or night.

Roll-up sign bracket compatibility

Roll-Up Sign Bracket Compatibility


Folded Roll-up sign

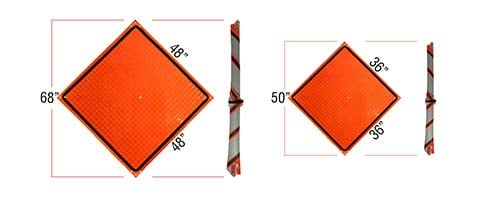

Roll-Up Sign Features

36" Sign

  • Unit Weight, without flags: 4 lb
  • Unit Weight, with flags: 5 lb
  • Storage Size: 4" x 4" x 50"

48" Sign

  • Unit Weight, without flags: 6 lb
  • Unit Weight, with flags: 7 lb
  • Storage Size: 4" x 4" x 68"

roll-up sign folding flags

Roll-Up Sign with Flag Assembly

Standard orange flags or flashing warning lights may be used in conjunction with signs.

When standard orange flags or flashing warning lights are used in conjunction with signs, they shall not block the sign face.

Our folding flag system allows permanent attachment of two 18" fluorescent orange vinyl flags. Flags roll up with the sign for easy storage and fast deployment. Sliding clips quickly lock flags in their open position.


sign-blueprint-tn

Roll-Up Sign Plastic Corner Pockets

At 3/4" deep, the Delta Rib Pocket is designed to be easier to deploy than conventional pockets. Made of tough polycarbonate, it features increased strength and the smallest storage diameter in the industry.

Featuring a full depth design, rectangular pockets are typically used at the top and bottom of the sign. Made of tough polycarbonate, they will fit all pocket style sign holders.


Double-Spring Stand

Rigid Aluminum Signs

sign-blueprint-tn

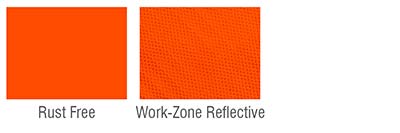

Rigid signs material grades

  • .080" Rust-Free Aluminum signs are recommended for day time use only, this material is not MUTCD compliant when used at night.
  • .080" Fluorescent Diamond Grade Work Zone Reflective Aluminum signs are MUTCD compliant when used day or night.

sign-blueprint-tn

Rigid Sign Bracket / Stand Compatibility


sign-blueprint-tn

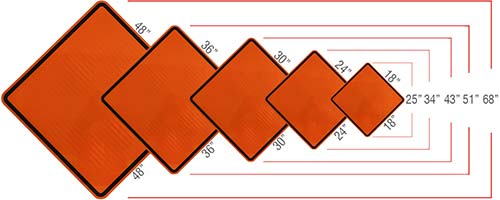

Rigid Sign Features

18" Sign

  • Sign weight: 2 lb
  • Mounting holes: 2 holes at 3/8" diameter, positioned top and bottom

24" Sign

  • Sign weight: 4 lb
  • Mounting holes: 2 holes at 3/8" diameter, positioned top and bottom

30" Sign

  • Sign weight: 7 lb
  • Mounting holes: 2 holes at 3/8" diameter, positioned top and bottom

36" Sign

  • Sign weight: 11 lb
  • Mounting holes: 2 holes at 3/8" diameter, positioned top and bottom

48" Sign

  • Sign weight: 19 lb
  • Mounting holes: 4 holes at 3/8" diameter, positioned in center of sign edges
Rigid Aluminum Sign

MUTCD Compliance

2009 Edition Part 6 Figure 6F-2. Methods of Mounting Signs Other Than on Posts

The fourth example shows an orange diamond-shaped sign with a black border and letters with the words "UTILITY WORK AHEAD" in three lines mounted on a vertical pole that is mounted on four horizontal supports. The distance from the bottom of the sign to the bottom of the supports is labeled as "1 ft MIN. above the traveled way." At the top of the sign, three orange flags are shown mounted equidistant apart from each other on short staffs that extend out from the top of the vertical pole at 45-degree angles.

Methods of Mounting Signs Other Than on Posts

Details

Traffic Signs

This sign follows the design guidelines specified in the MUTCD Standard for Parking and Traffic Signs.
To Learn about the Materials used in the making of this sign, refer to the Tab called "Material Descriptions..."


Sign Construction:

  • 36 x 36. 080 Reflective Aluminum signs are manufactured with Workzone Fluorescent Orange
  • Aluminum will not chip, crack or rust. Aluminum signs will last longer that plastic or steel signs.
  • Hole configuration is illustrated below.
  • These signs have been designed for the following applications: post, fence, and sign stand mounting.
  • These traffic signs do not have any overlamination.
  • Image / Text on signs is printed directly onto the sign material.
  • Printed image will resist fading and mild chemicals.

Hole Configuration

Road Construction Traffic Signs Configuration
Orange Construction (Aluminum 36 x 36" MUTCD Temporary Road Construction Signs

Sign Mounting on U-Channel Post

What do you need when mounting traffic signs?

If you are mounting signs to a U-Channel Post, the following hardware accessories are required:

  • 1 U-channel post, sizes range from 4ft to 12ft, either Green or Galvanized finishes.
  • 1 Bolting set (Part # Y3465 or Y4899) set includes washers and bolts, or
  • 1 Tamperproof Set (Part # Y4900 or Y4901) set includes washers, one way bolts and break away nuts.
  • 1 Pair of Ribbed Plates (optional) Part # Y4915

Please follow the installation steps shown on the illustration.

U-channel Post Mounting

Click on the link to view Post Installation Guidelines →


Sign Mounting on Round Post

What do you need when mounting traffic signs?

If you are mounting signs on a 2-3/8” Round Post, the following hardware accessories are required.

  • 1 Round Post (2-3/8” dia.) sizes range from 8ft to 12ft.
  • 1 Sign Aluminum Interlocking Bracket (Part # Y3457). Set includes 2 brackets and bolt/nuts, or
  • 2 sign Aluminum Bracket Set (Part # Y3458). Set includes 2 brackets with bolting set to mount 2 signs on each side of post.

Please follow the installation steps shown on the illustration.

Round Post Installation Guide

Click on the link to view Post Installation Guidelines →


Fonts Used by TrafficSign.com:

Brimar uses Highway Font Series for all of our stock Traffic signs, these fonts are:

  • HGBPIXymbols
  • HGCPIXymbols
  • HGEMPIXymbols
  • HGEPIXymbols

For our Custom Traffic signs, we allow our customers to select from a range of custom fonts. Click on this link to view an illustration of the Highway Font Series. →
