Roll-Up and Rigid Aluminum Signs

Advance Warning Rigid and flexible "roll-up" signs may be used for mobile, short duration and short term stationary work. Rigid signs must be mounted at least 5 feet above grade (7 feet where there are pedestrians or parked cars) for visibility and to avoid windshield penetration if they are impacted. Roll-Up signs must be mounted at least one foot above grade. Use retro reflectorized rigid signs for night work.

The signs below are available in 18″, 24″, 30″, 36″ and 48″ rigid aluminum, and 36″ and 48″ for roll-up materials.

Roll-up signs lead time is 15 business days after approval. Rigid aluminum signs ship within 3 - 5 business days.

Other Custom Diamond Roll-Up and Rigid signs:

Need to design a custom sign but don’t see a template you like? Email us directly at sales@trafficsign.com.

  • Loading…
    This page could not be loaded. Please try again or contact customer service for assistance.
    STEP 1 OF 6: Choose Layout
    Sign Layout

    The options below will allow you to have text only, image only or a combination of text and images on the sign. You have the option to upload your logo or custom image. You could also select "Upload Your Own Design" to upload an image to cover the entire sign.

    STEP 2 OF 6: Enter Your Text
    Main Text

    Due to its diamond shape, text will occasionally display outside the margins of the sign. Text and Graphics will be edited, fitted and reviewed by our design team prior to printing.

    Main Text font
    Main Text fontsize
    Main Text alignment

    Additional Text
    Additional Text font
    Additional Text fontsize
    Additional Text alignment

    Stock Image

    Image and Text will be adjusted to fit proportionately inside diamond before production. Looking to have your logo printed? Get in touch with our customer service team and they will provide you with a quote.

    Arrows
    PrevNext
    Recreation Symbols (Sports, People, Activities)
    PrevNext
    Speed Limits (from 1 thru 100)
    PrevNext
    Traffic & Parking Related Symbols
    PrevNext
    STEP 3 OF 6: Choose Sign Size
    Size Options

    Sizes 18″, 24″ and 30″ are only available in rigid aluminum. 36″ and 48" signs are offered in rigid aluminum and roll-up sign materials.

    STEP 4 OF 6: Choose Material
    Material Options

    This sign is available in either Rigid Aluminum or Roll-Up materials. See options below.

    MaterialVisibilityResistanceOutdoor DurabilityService TemperatureInfo
    N/A
    Fading and Mild Chemicals
    5 to 7 Years
    -40° to 212° F
    More Information
    Good Reflective
    Fading and Mild Chemicals
    Up to 7 Years
    -10°F - 130°F
    More Information
    Good Reflective
    Fading and Mild Chemicals
    Up to 7 Years
    -10°F - 130°F
    More Information
    Better Reflective
    Fading and Mild Chemicals
    7 to 10 Years
    -10°F - 130°F
    More Information
    Better Reflective
    Fading and Mild Chemicals
    7 to 10 Years
    -10°F - 130°F
    More Information
    Best Reflective
    N/A
    10+ Years
    -10°F - 130°F
    More Information
    Best Reflective
    N/A
    10+ Years
    -10°F - 130°F
    More Information
    Best Reflective
    N/A
    Up to 3 Years
    -10°F - 130°F
    More Information
    Best Reflective
    N/A
    10+ Years
    -10°F - 130°F
    More Information
    Day Time Use Only
    N/A
    Up to 3 Years
    N/A
    More Information
    Minimum Reflectivity
    N/A
    Up to 3 Years
    N/A
    More Information
    Minimum Reflectivity
    N/A
    Up to 3 Years
    N/A
    More Information
    Minimum Reflectivity
    Mild Chemicals
    Up to 3 Years
    N/A
    More Information
    Minimum Reflectivity
    Mild Chemicals
    Up to 3 Years
    N/A
    More Information
    Higher photometric performance
    Mild Chemicals
    Up to 3 Years
    N/A
    More Information
    Higher photometric performance
    Mild Chemicals
    Up to 3 Years
    N/A
    More Information
    Higher photometric performance
    Mild Chemicals
    Up to 3 Years
    N/A
    More Information
    STEP 5 OF 6: Mounting Options
    Mounting Holes or Ribs Assembly

    Rigid aluminum diamonds are supplied with 3/8" dia. mounting holes. Hole configuration is as follows: 18″, 24″, 30″ and 36″ diamonds have 2 holes (top and bottom), 48″ diamonds have 4 mounting holes. Roll-Up materials have two rib options, with and without flag assembly.
    View illustration of mounting holes and rib options.

    STEP 6 OF 6: Velcro Overlay or Laminate
    Velcro Overlays or Laminate Options

    ALL ROLL-UP SIGNS INCLUDE VELCRO LOOP FOR STORAGE PURPOSES. This is different than the velcro overlay option listed below.
    Please click here for details.
    The options are:
    1. None (no laminate) or Anti-Graffiti Film, applicable only to Aluminum Signs.
    2. Velcro options for Roll-Up materials
    Is your sign going to need velcro strips over all or some of the words? Please specify the requirement in the instructions field below. Velcro strips are optional, and typically used on signs with variable messages.

    Special Instructions

Recommended Accessories

Product Information

Roll-Up Signs

  • Roll-up sign material grades

Roll-up signs material grades

  • Super Bright Reflective Vinyl signs are MUTCD compliant when used day or night.

  • Roll-up sign bracket compatibility

Roll-Up Sign Bracket Compatibility


  • Folded Roll-up sign

Roll-Up Sign Features

36" Sign

  • Unit Weight, without flags: 4 lb
  • Unit Weight, with flags: 5 lb
  • Storage Size: 4" x 4" x 50"

48" Sign

  • Unit Weight, without flags: 6 lb
  • Unit Weight, with flags: 7 lb
  • Storage Size: 4" x 4" x 68"

  • roll-up sign folding flags

Roll-Up Sign with Flag Assembly

Standard orange flags or flashing warning lights may be used in conjunction with signs.

When standard orange flags or flashing warning lights are used in conjunction with signs, they shall not block the sign face.

Our folding flag system allows permanent attachment of two 18" fluorescent orange vinyl flags. Flags roll up with the sign for easy storage and fast deployment. Sliding clips quickly lock flags in their open position.


  • sign-blueprint-tn

Roll-Up Sign Plastic Corner Pockets

At 3/4" deep, the Delta Rib Pocket is designed to be easier to deploy than conventional pockets. Made of tough polycarbonate, it features increased strength and the smallest storage diameter in the industry.

Featuring a full depth design, rectangular pockets are typically used at the top and bottom of the sign. Made of tough polycarbonate, they will fit all pocket style sign holders.


  • Double-Spring Stand

Rigid Aluminum Signs

sign-blueprint-tn

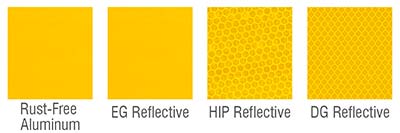

Rigid signs material grades

  • .080" Rust-Free Aluminum signs are recommended for day time use only, this material is not MUTCD compliant when used at night.
  • .080" Engineering Grade Reflective Aluminum signs are MUTCD compliant when used day or night.
  • .080" High Intensity Prismatic Reflective Aluminum signs are MUTCD compliant when used day or night.
  • .080" Diamond Grade Reflective Aluminum signs are MUTCD compliant when used day or night.

  • sign-blueprint-tn

Rigid Sign Bracket / Stand Compatibility


  • sign-blueprint-tn

Rigid Sign Features

18" Sign

  • Sign weight: 2 lb
  • Mounting holes: 2 holes at 3/8" diameter, positioned top and bottom

24" Sign

  • Sign weight: 4 lb
  • Mounting holes: 2 holes at 3/8" diameter, positioned top and bottom

30" Sign

  • Sign weight: 7 lb
  • Mounting holes: 2 holes at 3/8" diameter, positioned top and bottom

36" Sign

  • Sign weight: 11 lb
  • Mounting holes: 2 holes at 3/8" diameter, positioned top and bottom

48" Sign

  • Sign weight: 19 lb
  • Mounting holes: 4 holes at 3/8" diameter, positioned in center of sign edges
  • Rigid Aluminum Sign

MUTCD Compliance

2009 Edition Part 6 Figure 6F-2. Methods of Mounting Signs Other Than on Posts

The fourth example shows an orange diamond-shaped sign with a black border and letters with the words "UTILITY WORK AHEAD" in three lines mounted on a vertical pole that is mounted on four horizontal supports. The distance from the bottom of the sign to the bottom of the supports is labeled as "1 ft MIN. above the traveled way." At the top of the sign, three orange flags are shown mounted equidistant apart from each other on short staffs that extend out from the top of the vertical pole at 45-degree angles.

  • Methods of Mounting Signs Other Than on Posts
