Note:
Flashing LED lights operate 24/7 or dusk to dawn and are powered by a self-contained battery system, allowing them to run for up to 48 hours (2 days) without sunlight.
Recommended Accessories
Frequently Purchased Together
Product Information
Details
Our LED Solar No Pedestrian Crossing Sign is a critical safety feature designed to clearly communicate restricted pedestrian access in specific areas, such as busy roadways, industrial zones, or construction sites. The bright LED lights ensure maximum visibility, even in low-light conditions, helping to prevent accidents and maintain traffic flow. Crafted from durable materials, this sign is built to withstand the elements and provide long-lasting effectiveness in safeguarding both pedestrians and drivers. Ideal for use in various environments, this sign enhances safety and helps promote responsible road use.

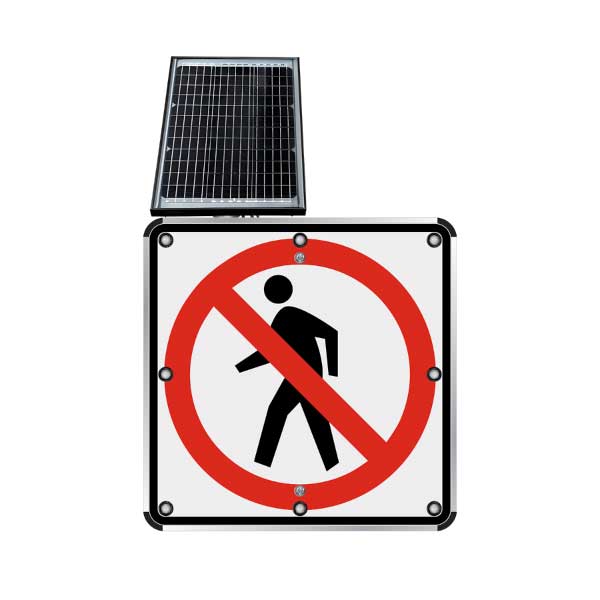

LED Solar No Pedestrian Crossing Sign
- The LED Solar No Pedestrian Crossing Sign is designed for installation on both new and existing poles.
- Sign comes in various sizes and reflective grades to suit your specific needs.
- MUTCD Compliant.
- LED flashing operates 24/7.
- Flashing LEDs enhance safety at intersections by increasing driver awareness of traffic control signs.
- Improved visibility both during the day and at night.
- With its adjustable tilting solar panel, it charges in just 6-8 hours and provides up to 48 hours of continuous use.
- Easily monitor the battery percentage digitally to stay informed about when a recharge is needed.
Note: 36" square signs feature four 3/8" mounting holes, designed to be installed on two sign posts.
Solar Panel Unit and LED Specifications
| Modes | 24/7 Flash or Flash from Dusk to Dawn |
| Battery | 12V 7,500 mAh Rechargeable Lithium-Ion Battery |
| Battery Life | 6-8 hours to fully charge / up to 48 hours of use |
| Solar Panel | 18V 22W |
| LEDs | 8 LEDs (0.5W each) |
| LED Colors | White |
| Reflective Grades | EG, HIP, DG |
LED Solar No Pedestrian Crossing Sign
Step by Step Installation Provided Below:
-
1. Secure the sign to the post using
the provided mounting bolts. -
2. Position the bracket and screw for
the solar panel in their designated locations. -
3. Use a socket wrench to adjust the
bracket's angle, then tighten the screw securely. -
4. Align the solar panel with the bracket,
then place the solar panel into position. -
5. Use an Allen key to tighten the two
set screws, securing the solar panel to the bracket. -
6. Connect the cable from the solar panel
to the cable from the battery. -
7. Turn the orange key on the battery to
switch between functions: Off, 24/7 flashing,
and night mode (dusk to dawn) flashing. -
8. Press the small button next to the
digital display to check the battery charge.
The first press shows the battery percentage,
the second displays the voltage (100% = 12.5V),
and the third press turns off the display.
Technical Resources
Data Sheet
