Note:
Flashing LED lights operate 24/7 or dusk to dawn and are powered by a self-contained battery system, allowing them to run for up to 48 hours (2 days) without sunlight.
Recommended Accessories
Frequently Purchased Together
Product Information
Details

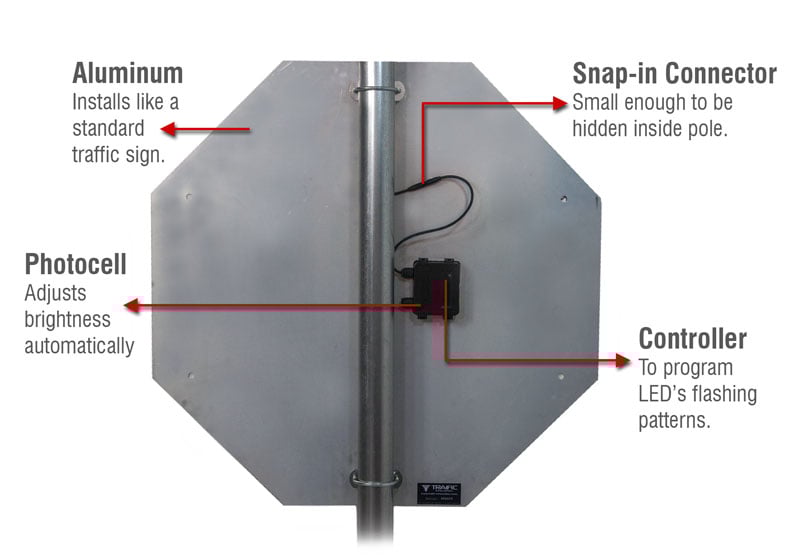

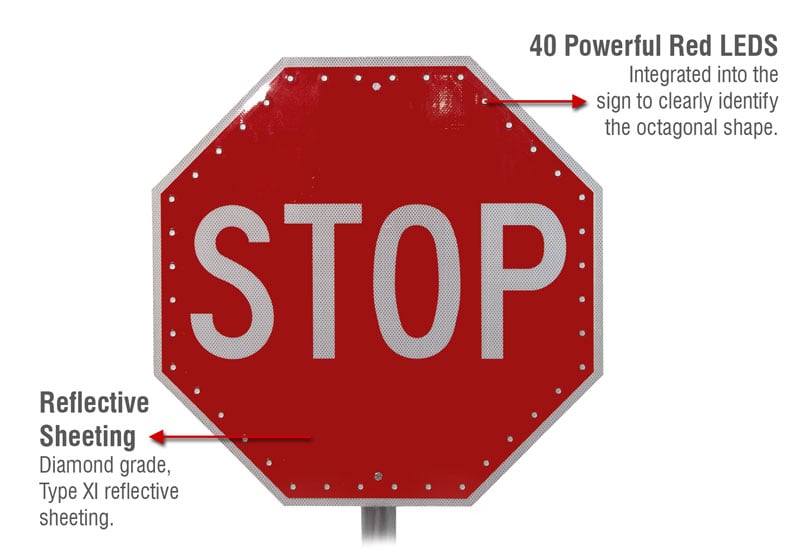

Solar LED Stop Sign Features
Our MUTCD compliant Solar LED Stop Sign immediately draws drivers’ attention to the sign using integrated 24/7 flashing LEDs. Ideal for intersections, crosswalks, and high-incident roads where static signs will not suffice. With its solar panel and batteries, the LED STOP sign is autonomous for a period of at least three 3 days without sunlight, even in winter.
This LED STOP is designed to be installed on round and square posts (Bracket for square post is sold separately Solar Sign Square Post Adapter.)
For large round posts with diameters other than 2-3/8" such as street light poles, strapping will necessary. Strapping is sold separately: Stainless Steel Strapping.
- Solar LED Stop Sign R1-1 has been designed to be installed on round and square posts, as well as light poles.
- 24 hours a day and 7 days a week LED flashing.
- Flashing LEDs improve safety at intersections by enhancing driver awareness of traffic-control signs.
- Improved daytime and night time visibility.
- Included Traffic Solar Power Unit: Is a compact photovoltaic system that includes; solar panel, powder coated aluminium enclosurer, universal installation bracket, Lithium LifePo4 battery, solar charger, LED Status indicators and Quick connector.
- Designed to allow installation on top or on the side of a pole. Simply plugin the connector to the device to obtain a standalone, lightweight and inobtrusive solar powered system.
- Flashing Activation Options: 24/7 Flashing (reinforces the sign in critical zones), Night Only Flashing Option, Radar Activation Flashing Option.
-
-
-
-
-
-
For 2-3/8” Round Post -
Strapping NOT Included -
For Use with Square Posts -

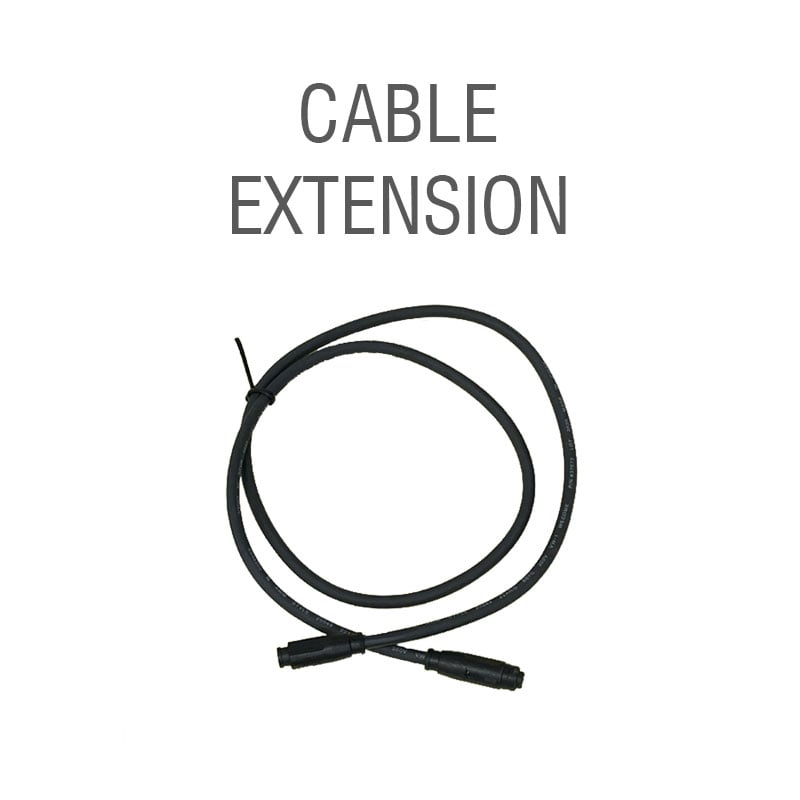

30" Long Extension Cable -

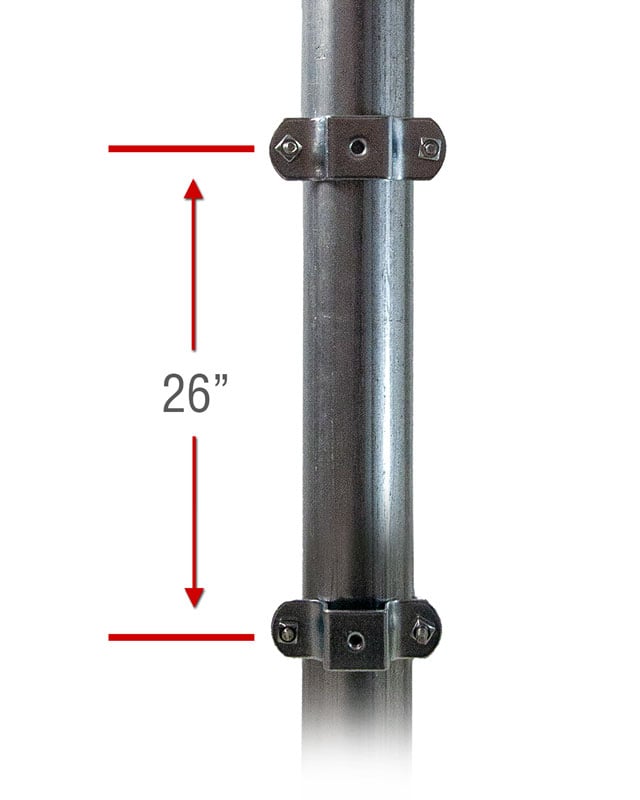

1. Install the brackets from
26” center-center. -

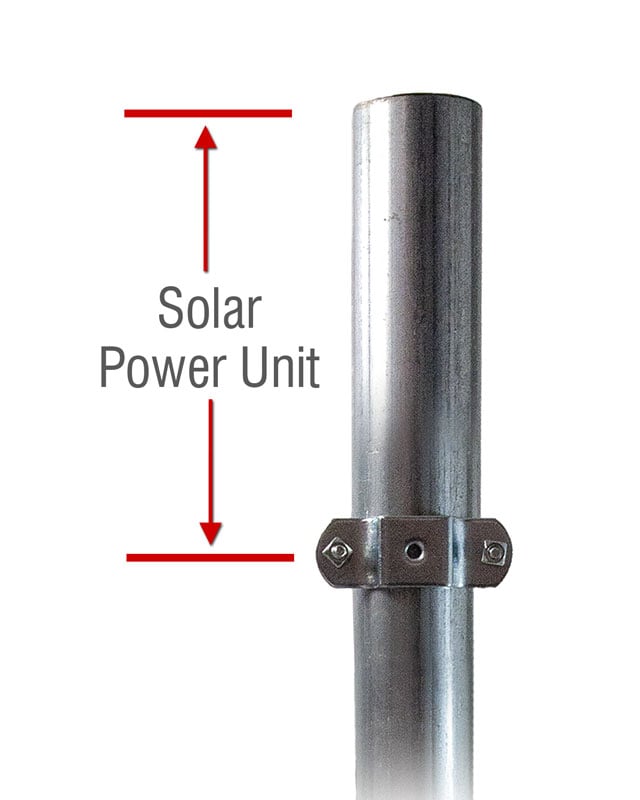

2. Leave enough clearance to
install solar power unit. -
3. Install bolts and nuts on the panel.
Place panel on bracket and tighten bolts. -

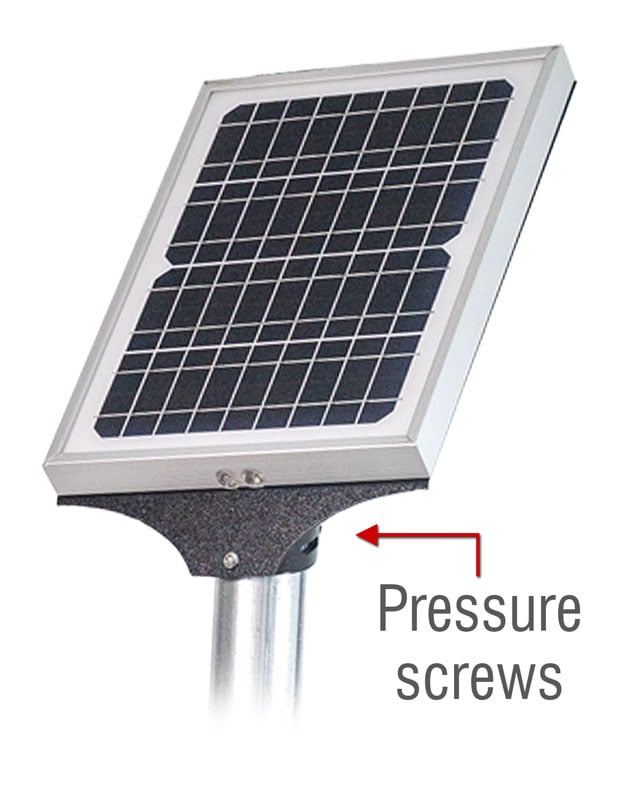

4. Set the panel towards the south
and tighten the pressure screws. -

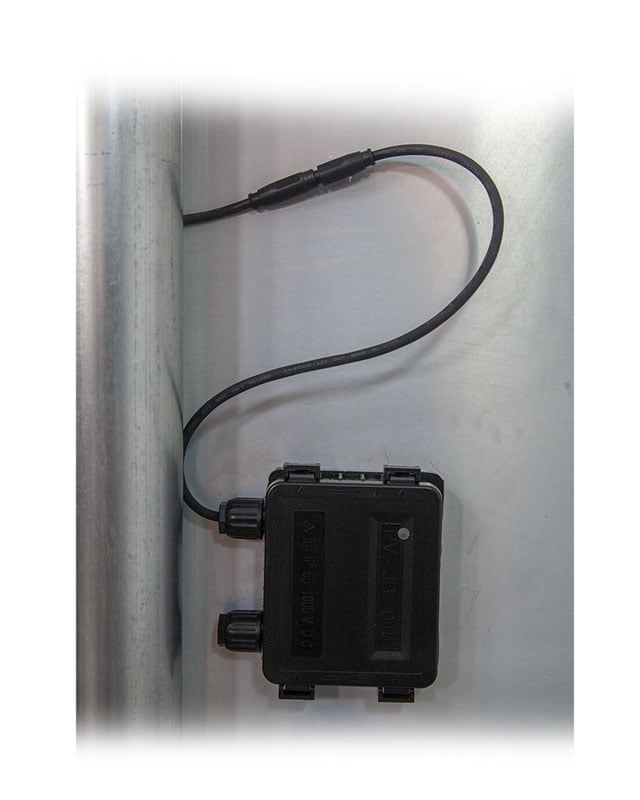

5. Plug the solar panel to the sign
(should take +/-5 sec to activate). -
-
-
30" LED Stop Sign

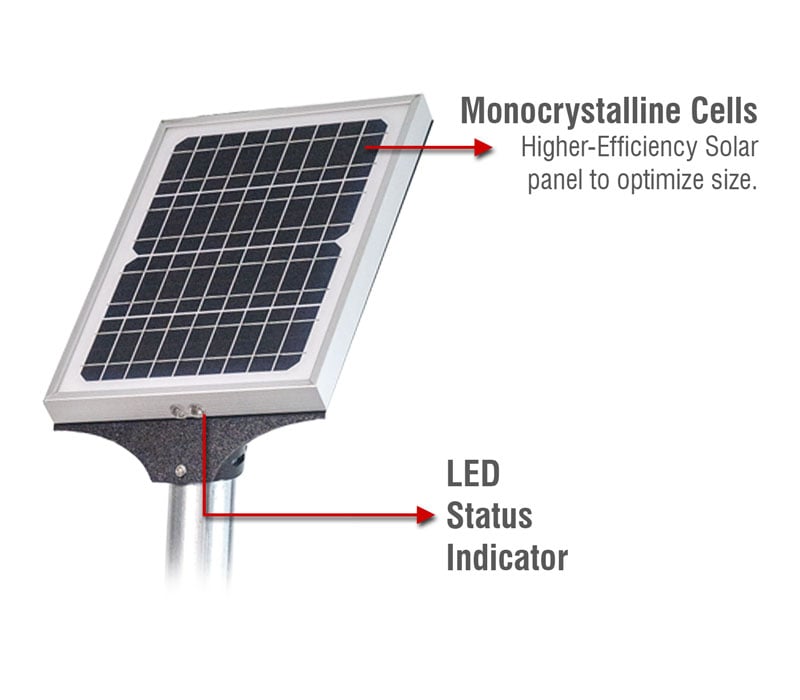

Solar Panel Unit

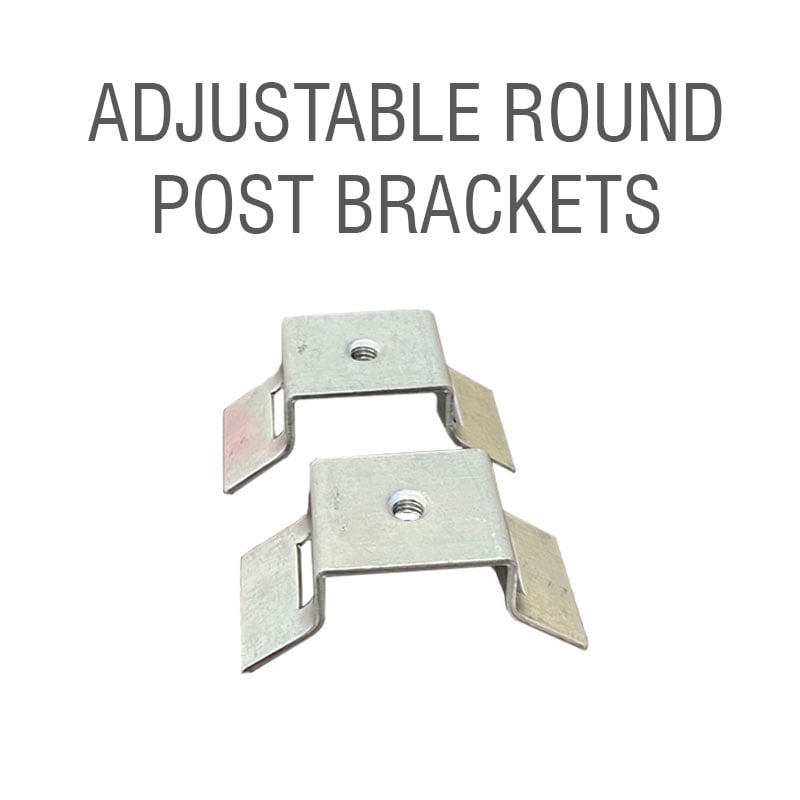

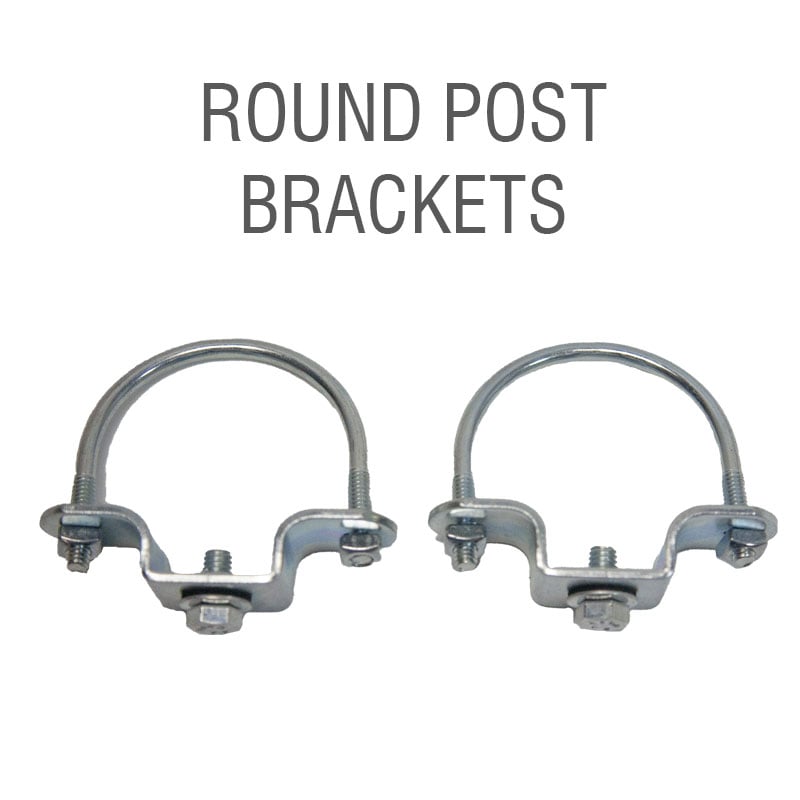

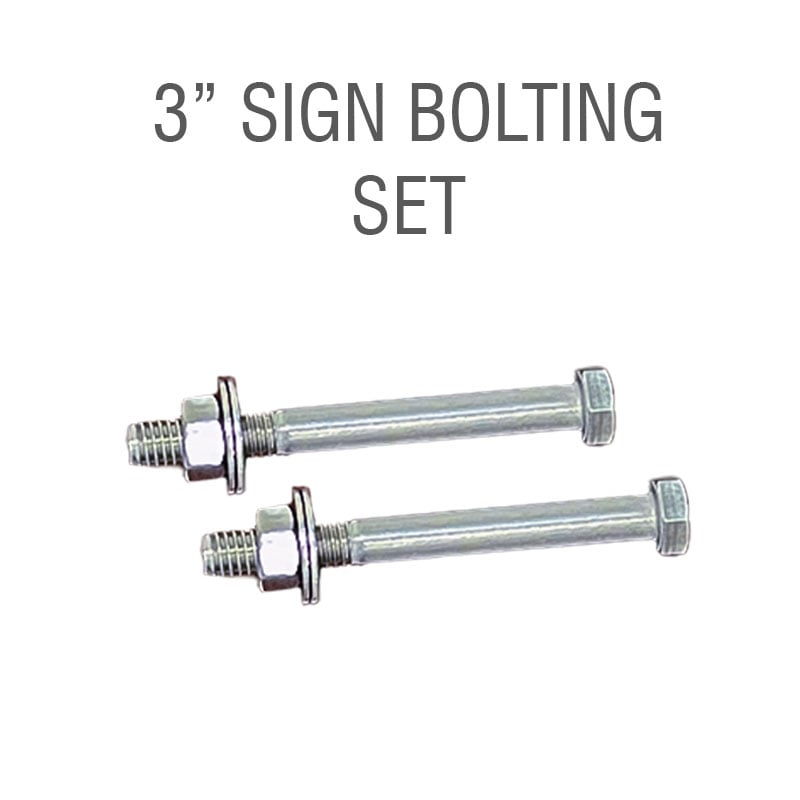

Hardware Included

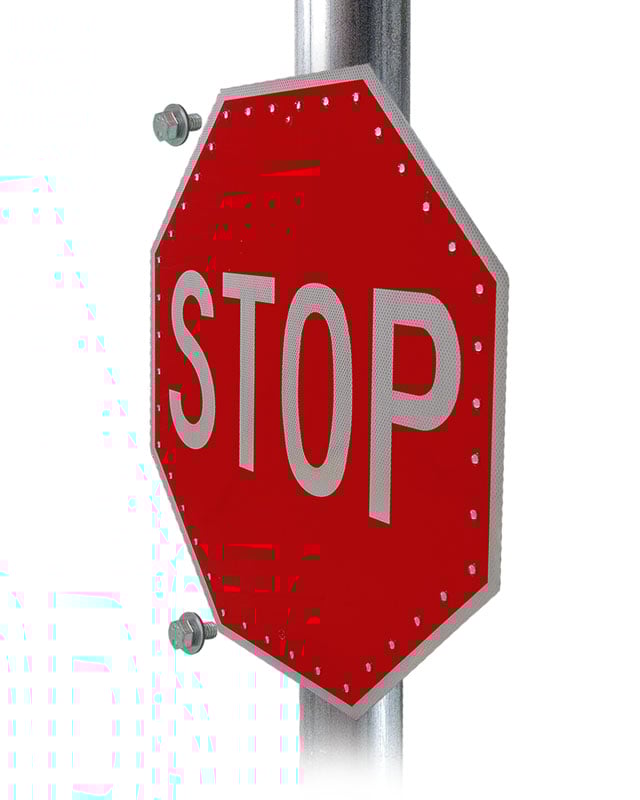

Solar LED Stop Sign Installation Procedures
This LED Solar Stop Sign is designed to be installed on round and square posts. Square Post Solar Unit Adapter is sold separately: Solar Sign Square Post Adapter.
For large round posts with diameters other than 2-3/8" such as street light poles, strapping will necessary. Strapping is sold separately: Stainless Steel Strapping.
Installation below is for a 2-3/8" Round Post.
U-Channel Post Installation Video
Learn all about the installation of SafetySign.com’s new LED Solar Stop Sign to a U-channel Post.

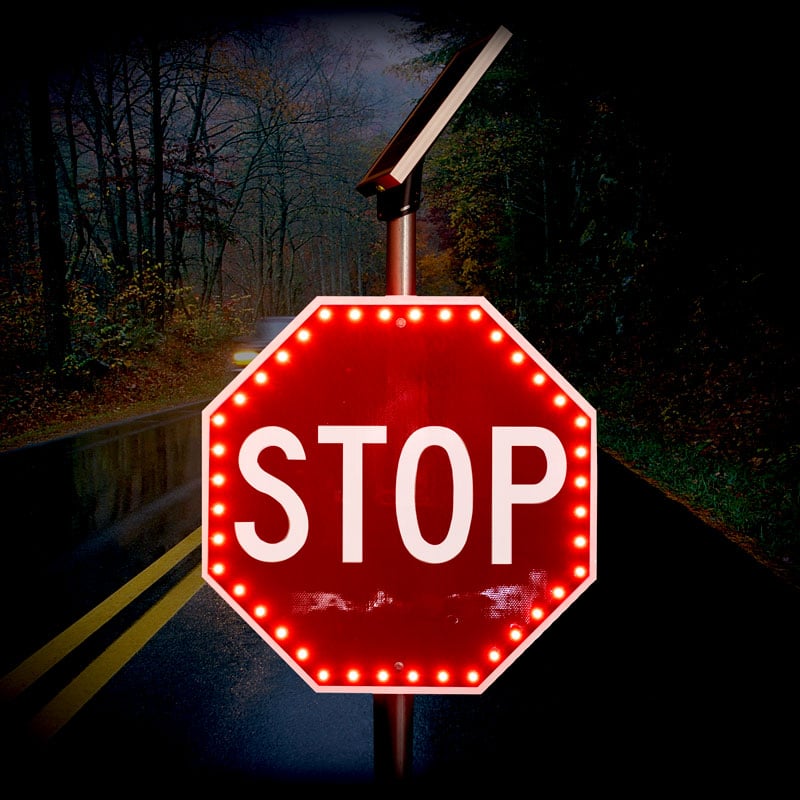

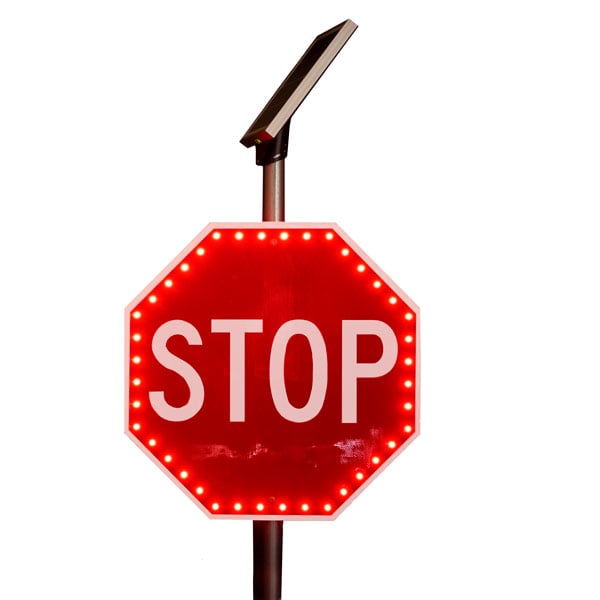

Day & Night Time Views

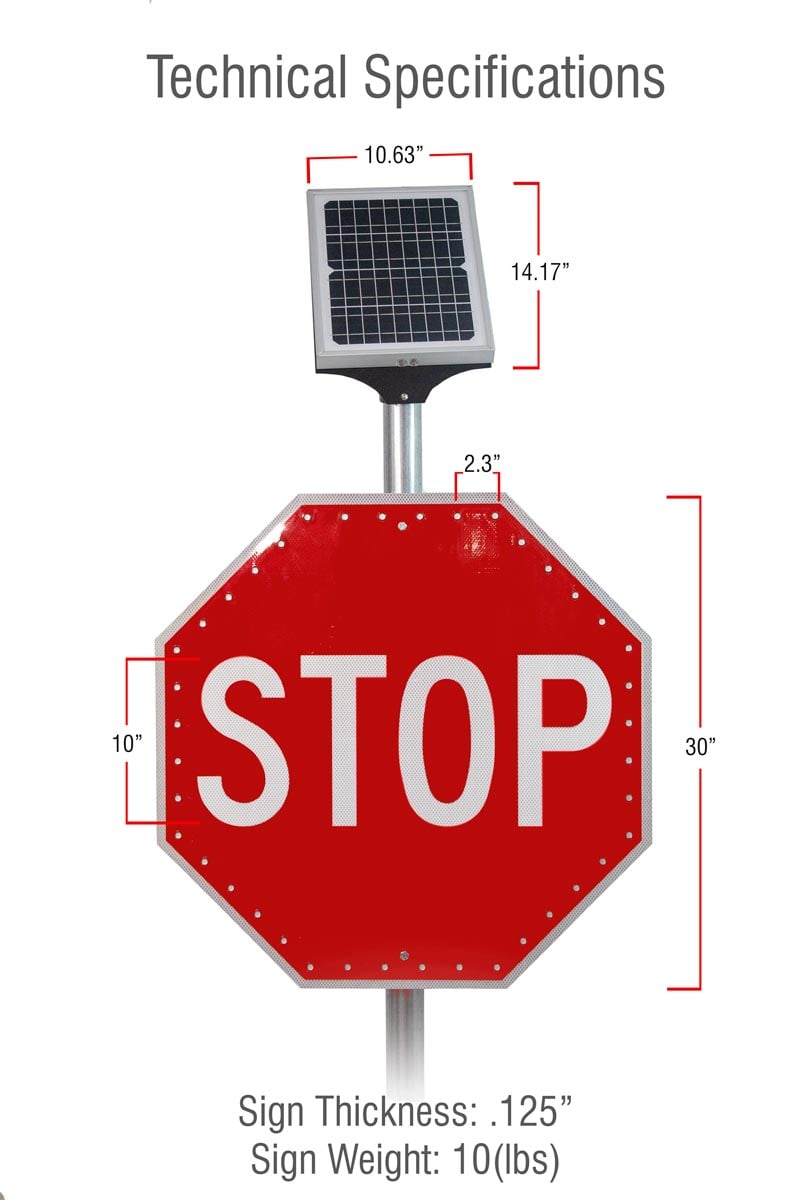

LED Stop Sign Specifications
| LED Sign Type | Flashing Traffic Stop Sign |
| Sign Legend | Stop |
| Sign Text Color | White |
| Sign Background Color | Red |
| Sign Material | Aluminum |
| Sign Thickness | .125" Aluminum |
| Sign Mounting Style | Mounting Holes |
| Retroreflective Grade | 3M Diamond grade Type XI |
| Standard | MUTCD R1-1 and TAC |
| LED Display Color | Red |
| LED Angularity | 30 degrees |
| LED Life Expectancy | 100,000 hrs |
| Basic Power Source | Solar |
| Luminosity | 100 cd day - 30 cd night |
| Auto-Dimming | Variable based on ambient light |
| Voltage In | 10.8 to 15 VDC |
| Max. Power at 12 V | 8 W |
| Connector | 10 mm OD, Male, 6″, IP67 |
| Flash Patterns | 0.1 - 0.2 - 0.5 sec or Tri-Flash |
| Flash Rate | 60 per minute |
| Activation | 24/7, night only, on-demand |
| Default Setting | 0.1 sec, 24/7 |
| Back Plate | Aluminum 5052-H38 |
| LED Protective Sheeting | UV-resistant transparent polycarbonate |
| Waterproof Rating | IP65 |
| Operating Temperature | -40° to +131°F |
Looking for more detailed specifications?
LED solar stop sign specifications
SOLAR POWER UNIT (ALL-IN-ONE) Specifications
| Solar Panel Wattage | 10 W |
| LifePo4 Battery | 12.8V – 9Ah |
| Solar Charger | MPPT, 10 A, IP67 |
| Connector | 10 mm OD, Male, 6″, IP67 |
| Operating Temperature | -40°F to + 165°FF |
| Weight | 4.5 kg (10 lb) |
Technical Resources
Data Sheet
