Official Extruded Blade with Street Number
- Double-sided MUTCD Compliant Aluminum with EG or HIP reflective
- Read about EG Reflective change from 3M EGP Reflective to 3M Advanced Flexible Engineer Grade 7310.
Not what you're looking for?
Start Here To Design Your Sign
1 Choose A Sign Style
Select A Size
2 Enter Text Options
over the maximum allowed characters () for this sign size, please delete characters or change to a wider sign size.
Street Name
Max Chars
0 12Street Number (Max 5 characters)
5You should increase your sign size to fit your street name. Your street name is more compressed than recommended.
3 Choose Other Sign Options
Mounting Option Mounting holes are not required for typical street sign post installation.
Notice:
The mounting hole option selected is not standard. Please see the updated pricing chart.Extruded Blade with both, Suffix and Street Number.
Image shown is for preview purposes only. View an accurate sample of our print quality.
4 View Materials / Enter Quantity & Add to Cart
Size Materials Quantity / Price Enter Quantity 1 2 3 4 5 10 24 × 6″ .080″ Double-Sided Engineering Grade Reflective Extruded Aluminum $70.70 $69.30 $67.90 $66.55 $65.20 $63.90 24 × 6″ .080″ Double-Sided High Intensity Prismatic Reflective Extruded Aluminum $75.30 $73.85 $72.35 $70.90 $69.45 $68.05 Special Instructions/Comments
Looking for a proof? Don’t use this comment box — You will get to set your printing options for supported products after adding to cart.
Recommended Accessories
Product Information
Details
MUTCD Street Name Signs – Extruded Blade with Optional Prefix and Suffix
The extruded blade street name sign is a standardized sign listed in the Manual of Uniform Traffic Control Devices (MUTCD) under the designation of D3-1. According to the manual, street name signs should be installed in urban areas at all street intersections regardless of other route signs that might be present and should be installed in rural areas to identify important roads that are not otherwise signed. Furthermore, the lettering for names of streets on these street signs shall be composed of a combination of lower-case letters with initial upper-case letters.
Product Features:
- Thickness of .080″ at the center and .240″ thickness at the top and bottom edges
- Signs are printed on both sides (single-side printing is available by request)
- Both the background and text are retroreflective
- Works without mounting holes
- Signs are fabricated from .080" aluminum
Text Heights:
-
6″ Tall Street Signs 9″ Tall Street Signs For local public roads with speed limits of 25 MPH or less. For single-lane public roads with speed limits of 30 MPH or more.
Reflective Options:
Street name signs are available in two different reflective materials, each with its own purpose as detailed below.
-
Reflective Type Material Usage Engineering Grade (EG)
ASTM D4956 Type INot permitted for use in official roadway applications.
Best suited for private developments.
Read about EG Reflective change from 3M EGP Reflective to 3M Advanced Flexible Engineer Grade 7310.High Intensity Prismatic (HIP)
ASTM D4956 Type IVThe minimum required for official roadway applications.
Color Choices: Official MUTCD / DOT Colors
The MUTCD designates green as the official background color of all guide signs but also allows for substitute background colors. The alternate colors include blue, brown, and white. For the background colors green, blue, and brown, the street name and border, if used, must be white. For the background color white, the street name and border, if used, must be black.
Unofficial Novelty Colors
These colors are not approved for use on official street name signs for public roads but can be used on private roads, in private developments, and in other areas where signs do not have to meet MUTCD guidelines.
Samples of Printed Signs:
Please see the images below for actual signs printed with an image and street number.
Font Style Options
TrafficSign.com uses the approved font below known as FHWA Series 2000 when producing your street name signs, this font offers several variations of character compression and character spacing, the correct version will be selected by us when producing your signs. The selection will be based on the length of the street name versus the length of the sign ordered. Due to the nature and size of street name signs, more often than not, the street name is compressed (from side to side) to fit the name area on the sign; that's the reason we have recommended characters, as soon as you go over the recommended number of characters the legibility of the sign decreases and the compression of the name increases.
Mounting Bracket Information:
What mounting brackets do you have for street name signs?
Depending on the type of post you’ll be mounting your street name signs onto, these are the brackets available:
-

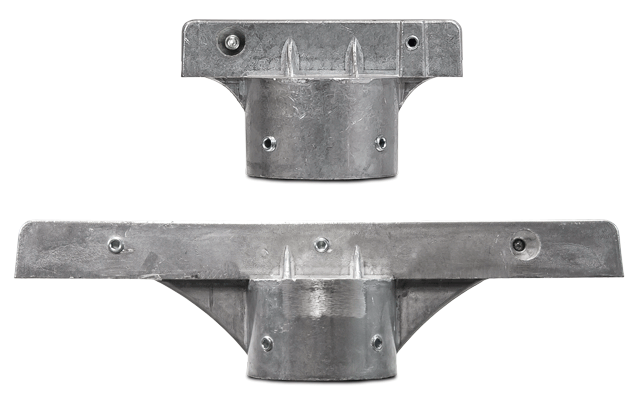

2⅜″ Round Post Bracket
Available in both 5½″ and 12″ widths -

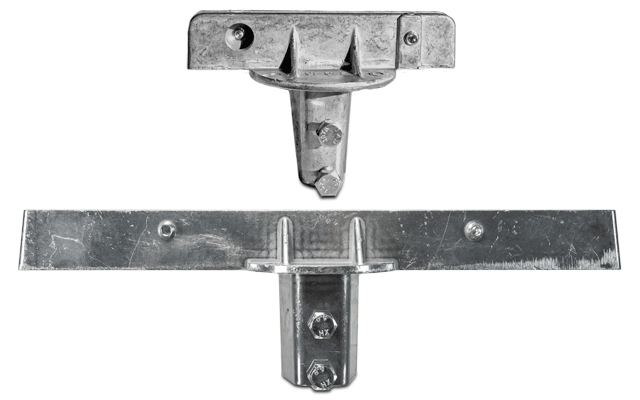

2″ and 1¾″ Square Post Bracket
Available in both 5½″ and 12″ widths
-

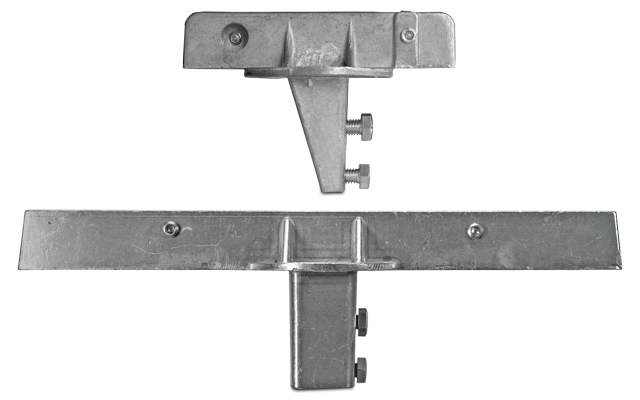

90 Degree U-Channel Post Bracket
Available in both 5½″ and 12″ widths -

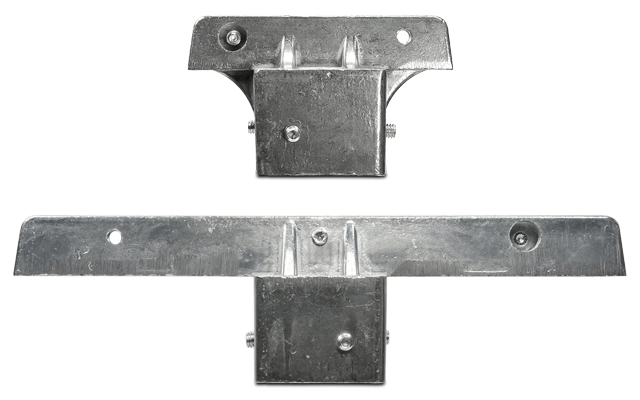

180 Degree U-Channel Post Bracket
Available in both 5½″ and 12″ widths
-

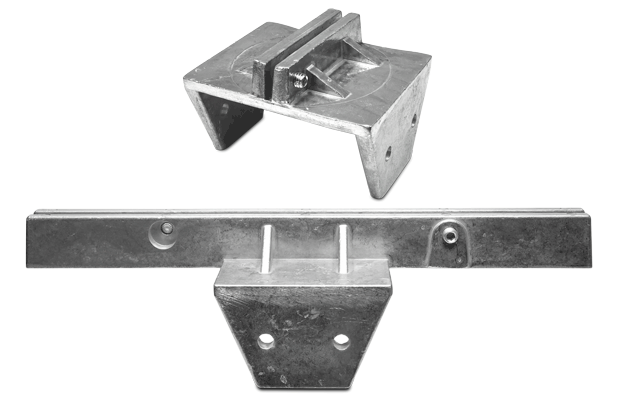

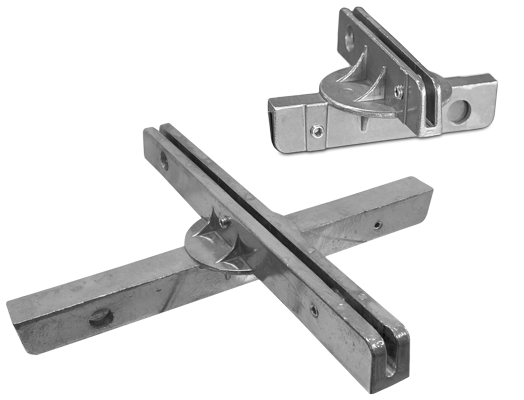

90 Degree Cross Piece Bracket
Available in both 5½″ and 12″ widths -

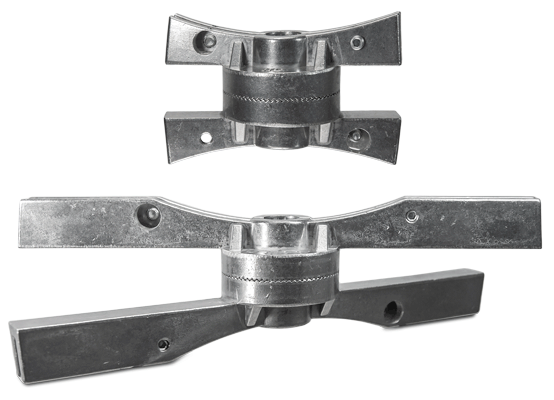

Fully Adjustable Cross Piece Bracket
Available in both 5½″ and 12″ widths
-

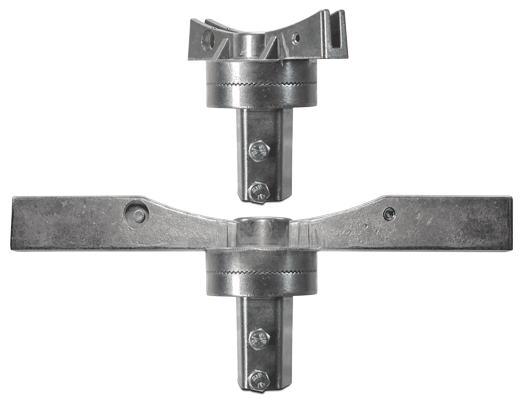

Fully Adjustable U-Channel Post Bracket
Available in both 5½″ and 12″ widths -
4×4 Wood Post Bracket
Available in both 4″ and 12″ widths
-
2-Way Adjustable Cross Piece Bracket
Bracket can be set to 45 or 180 degrees only -

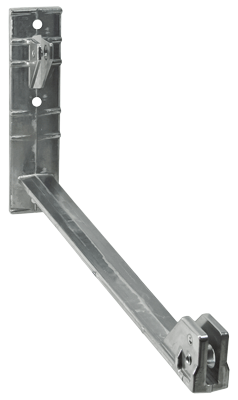

Wing Bracket
Available in 16″ or 24″ widths
What size bracket do I need to install the street name sign?
Choosing the right mounting bracket will not only allow your sign to be displayed as desired, but it will also ensure that your sign is supported properly. The chart below will help you determine how wide your mounting bracket should be for each size street name sign.
-
6″ Tall
Sign SizesBracket Size Needed 9″ Tall
Sign SizesBracket Size Needed 18 × 6″ 5½″ 18 × 9″ 12″ 24 × 6″ 5½″ 24 × 9″ 12″ 30 × 6″ 12″ 30 × 9″ 12″ 36 × 6″ 12″ 36 × 9″ 12″ 42 × 6″ 12″ 42 × 9″ 12″ 48 × 6″ 12″ 48 × 9″ 12″
