Drive Rivets
Item #
Y3527

Note:

Signs mounted using drive rivets provide better torsional and windload strength.

Drive Rivets

Size:

Material:

Laminate:

Mounting:

Packaging:

Price:
$3.30

Your item has been added to cart.

0 In Stock
Special freight arrangements are necessary.

Need a quote for a large order? Call 800‑274‑6273 or email us.

Recommended Accessories

Product Information

Details

Drive Rivets

Drive rivets are the ideal hardware for the installation of signs on either u-channel or galvanized square posts. Their design not only allows for fast and easy installation, but also provides tamper resistance. Our drive rivets are all aluminum to withstand the elements for the life of the sign and include a nylon washer to protect the face of the sign during installation.

Installing a drive rivet is as easy as hitting the pin with a framing hammer or sledge hammer until it is flush with the head. We also recommend installing these before you connect the sign post to your anchor post, while your sign post is laying flat on the ground. This will make the installation much easier.

Drive rivets tamper resistant hardware for square posts


Drive Rivets with U-Channel Sign Posts

  • Drive rivets used with Uchannel sign post
    Drive Rivets on
    U-Channel Post
  • front and back view of drive rivets installed on uchannel sign post
    Mount the sign on the front/channel side.
    Compatible with Lightweight and Heavy-duty U-Channel sign posts.

Drive Rivets with Square Sign Posts

  • Inside view of the drive rivet used for sign installation on square post
    Inside view of the drive rivet used for sign installation on a square post.
  • View of the mounted sign installed with a drive rivet
    Mounted sign installed with a drive rivet.

Installation

Tools required:

  • Hammer

Installation instructions:

  1. Place the sign on the square post where it meets your height requirement and line up the mounting holes with the holes on the post.
  2. Insert the drive rivets through the mounting holes on your sign into the post.
  3. Using a hammer, hit the drive rivet until the pin is flush with the head.

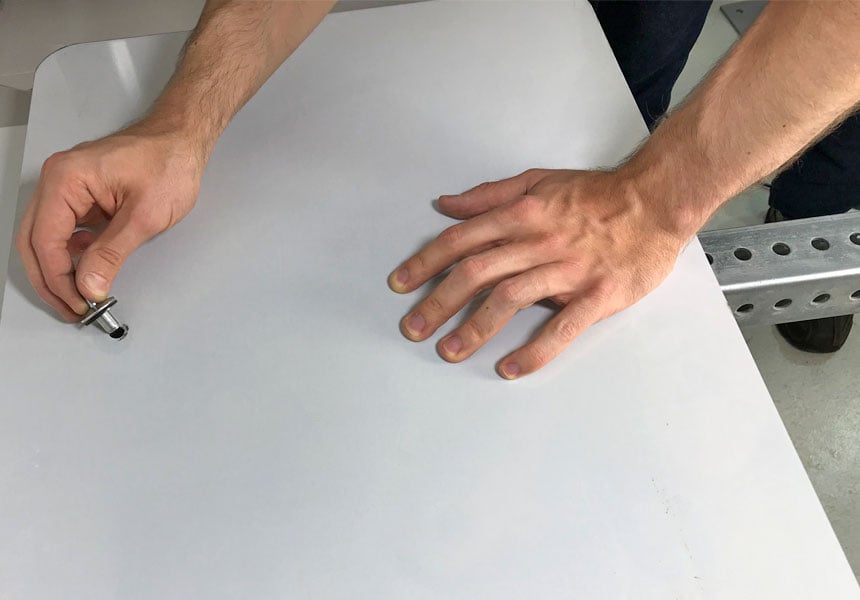

  • Place the drive rivet over the sign for installation

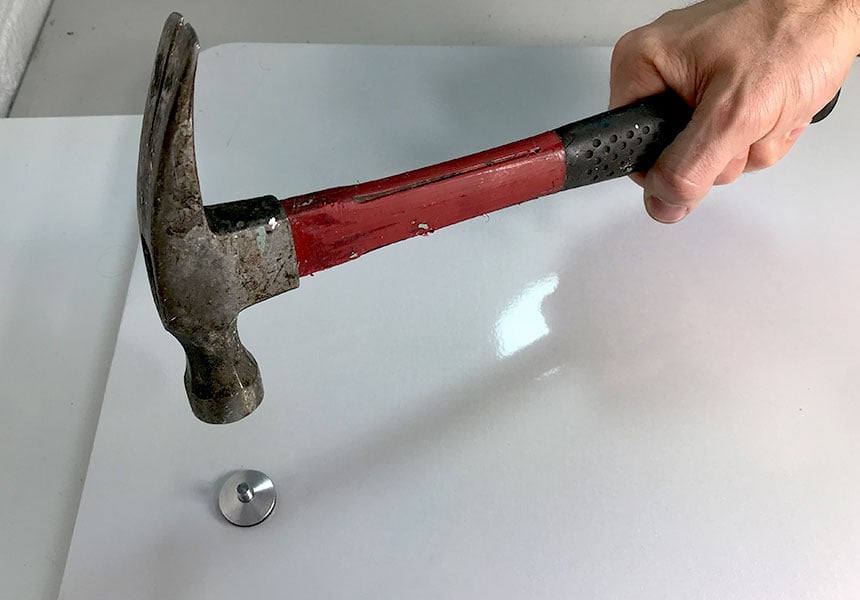

  • Hammer down the drive rivet to complete installation

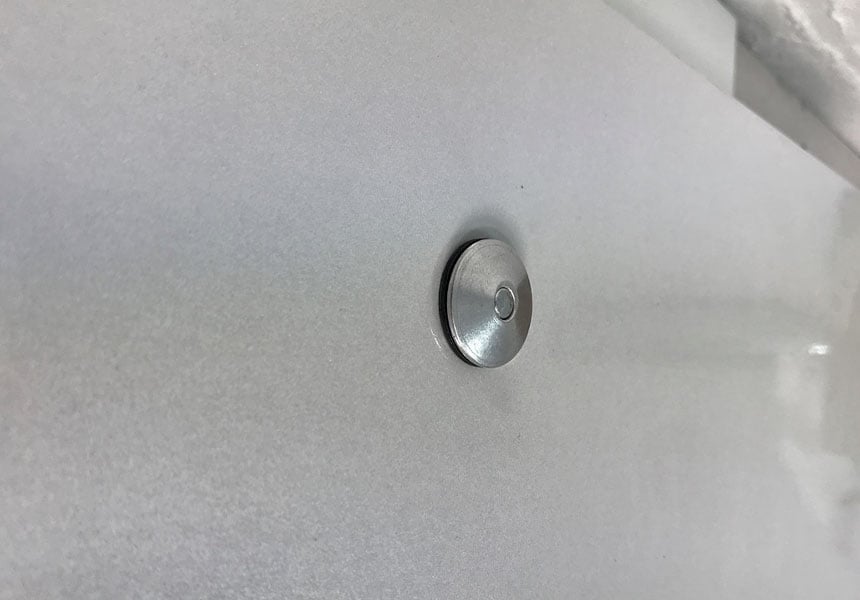

  • View of the mounted sign installed with a drive rivet

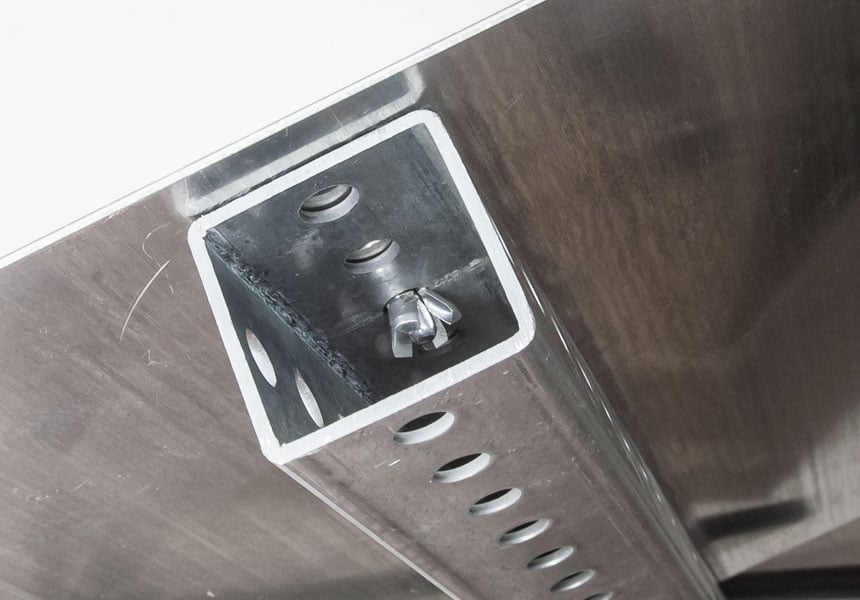

  • Inside view of the drive rivet used for sign installation on square post
